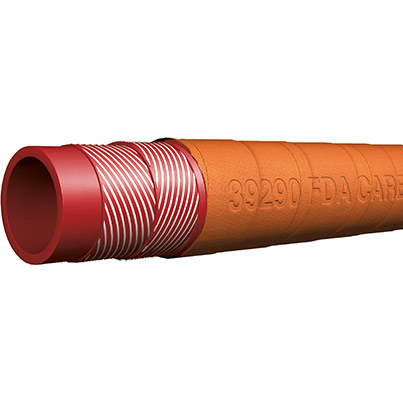

Suction and delivery hoses, otherwise simply known as S&D hoses or suction and discharge hoses, can not only transfer media from one location to another via gravity, but they also use negative pressure to act more like a vacuum without collapsing, crushing or kinking under the pressure. Meanwhile, food-safe hose is designed to facilitate the safe and hygienic transference of foodstuffs or beverages, and so must be flexible as well as resistant to abrasion, odours, chemicals, temperatures and pressure. This premium-quality potable water hose features a liner manufactured from FDA-approved natural rubber, so it can be used for conveying general foodstuffs.
Learn more...
• FDA-approved drinking water hose crafted from EPDM with a natural rubber lining
• EPDM is extremely tough rubber resistant to high temperatures, ozone, weathering and acid to ensure a long service life
• Reinforced with textile and galvanised steel
• Suitable for conveying potable water and general foodstuffs
Get technical...
EN ISO 1307:2006
Suction and delivery hoses, otherwise simply known as S&D hoses or suction and discharge hoses, can not only transfer media from one location to another via gravity, but they also use negative pressure to act more like a vacuum without collapsing, crushing or kinking under the pressure. Meanwhile, food-safe hose is designed to facilitate the safe and hygienic transference of foodstuffs or beverages, and so must be flexible as well as resistant to abrasion, odours, chemicals, temperatures and pressure. This premium-quality potable water hose features a liner manufactured from FDA-approved natural rubber, so it can be used for conveying general foodstuffs.
Learn more...
• FDA-approved drinking water hose crafted from EPDM with a natural rubber lining
• EPDM is extremely tough rubber resistant to high temperatures, ozone, weathering and acid to ensure a long service life
• Reinforced with textile and galvanised steel
• Suitable for conveying potable water and general foodstuffs
Get technical...
EN ISO 1307:2006
Specification
| Colour | |
|---|---|
| External Hose Colour | Orange |
| External Hose Colour Options | Orange |
| Internal Hose Colour | Red |
| Features | |
|---|---|
| Anti-Static Compound | false |
| Anti-Static Wire | false |
| Crush Resistant | false |
| Delivery | true |
| FDA approved | true |
| Smooth Bore | false |
| Suction | true |
| Vacuum (mmHG) | 600 |
| Search Material | EPDM,Natural Rubber,Textile & Galvanised Steel |
| Brand | Not Branded |
| Brand Type | Vendor |
| Finish | |
|---|---|
| Outer Finish Type | Wrapped |
| Standards | |
|---|---|
| ADI Approved | false |
| EU Regulation 10/2011 | false |
| Reach Approved | true |
| WRAS Approved | false |
| Material | |
|---|---|
| Cover Material | EPDM |
| Lining Material | Natural Rubber |
| Reinforcement Material | Textile & Galvanised Steel |
| Pressure | |
|---|---|
| Burst Pressure (BAR) | 68 |
| Burst Pressure (PSI) | 988 |
| Working Pressure (BAR) | 17 |
| Working Pressure (PSI) | 247 |
| Size Info | |
|---|---|
| Bend Radius (mm) | 381 |
| Coil Length (m) | 61 |
| External Diameter (mm) | 98 |
| Internal Diameter (mm) | 76 |
| Internal Diameter (mm) Options | 76 |
| Temperature | |
|---|---|
| Max Temperature (ºC) | 80 |
| Min Temperature (ºC) | -40 |
| Weight | |
|---|---|
| Weight (kg/m) | 4.42 |
